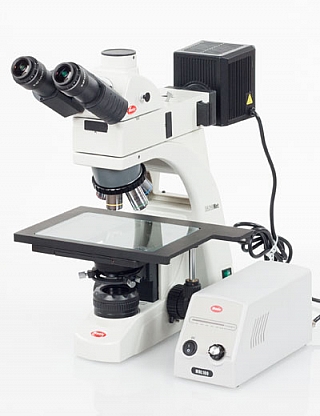

BA310MET-T Trinocular 6x4

  • Trinocular head Siedentopf type, 30º inclined, 360º swiveling, (Light split 100:0/20:80)
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecups
  • Reversed quintuple revolving nosepiece
  • CCIS LM Plan achromatic objectives LM PL 5X, 10X, 20X, 50X
  • Coaxial coarse and fine focusing system with tension adjustment
  • Stroke 6"x4" stage with a 150x100mm range and a stage area 300x180mm with glass plate
  • Focusable Abbe condenser N.A. 0.85 with iris diaphragm
  • Epi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamp house
  • Power supply 100-240V (CE)
  • Koehler illumination quartz halogen 6V/30W with intensity control
  • Power supply 220V (CE)
  • 45mm blue filter, power cord, Allen hexagonal key, vinyl dust cover
