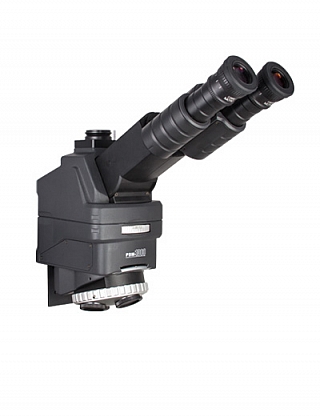

PSM-1000E Head

  • Trinocular tilting head Siedentopf type, 3º~30º (Light split 50:50/0:100)
  • Interpupillary distance adjustment between 55-75mm
  • Widefield eyepieces WF10X/24mm with diopter adjustment on both eyepieces
  • Upright image for easy manipulation work
  • 3-lens change-over turret; 1X UV/VIS (optimized for 355nm – 532nm), 1X IR/VIS (optimized for 532nm-1064nm) and 2X
  • Quadruple nosepiece with click stops for precise magnification changes; each position individually centrable with one reference position
  • Mounting thread for the objectives M26 X 1/36” (0.706)
  • Port for Light guide
  • Built-in Aperture diaphragm
  • Analyzer and Polarizer slots
  • Laser safety kit; shims and laser safety pin
