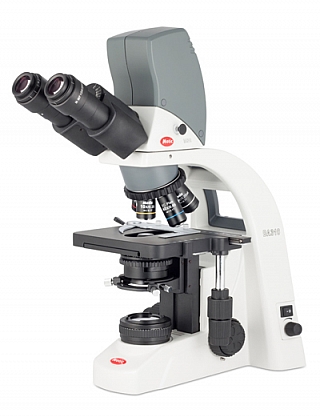

BA310 LED Digital

  • Binocular head Siedentopf type, 30º inclined with Built-in digital camera CMOS 1/2” chip
  • 3MP - 2048x1536 pixels with USB2.0 output
  • Widefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces, with rubber eyecups
  • Reversed quintuple revolving nosepiece
  • CCIS EF-N Plan Achromatic objectives EF-N PL 4X, 10X, 40X S, 100X S-Oil
  • Coaxial coarse and fine focusing system with tension adjustment
  • Built in low position coaxial mechanical stage (Right-hand control)
  • Focusable Abbe condenser N.A. 0.90/1.25 with iris diaphragm and slot
  • 3W LED Koehler illumination with intensity control
  • Motic Images Plus 2.0 for PC & MAC
