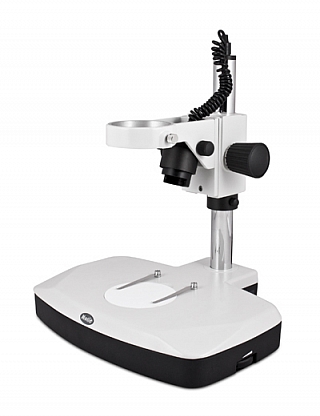

Halogen large working area stand

Incident / Transmitted halogen large working area stand

For SMZ-168 series



Base                             Focusing head holder
Lenght 280mm   Pole mount diameter 32mm
Width 330mm   Head mount diameter 76mm
Height 360mm   Focusing stroke 49mm

Pole     Illumination
Diameter 32mm   Incident Halogen 12V/10W
Height 305mm   Transmitted Halogen 12V/10W
      with intensity control
